Epoxy fiberglass sheets are renowned for their durability and strength. Made from a combination of epoxy resin and fiberglass, these sheets are widely used across many industries.
But, can they withstand high temperatures? This is a crucial question for their application in environments exposed to extreme heat.
In this post, we’ll explore the heat resistance of epoxy fiberglass sheets, including their limits and ideal uses.

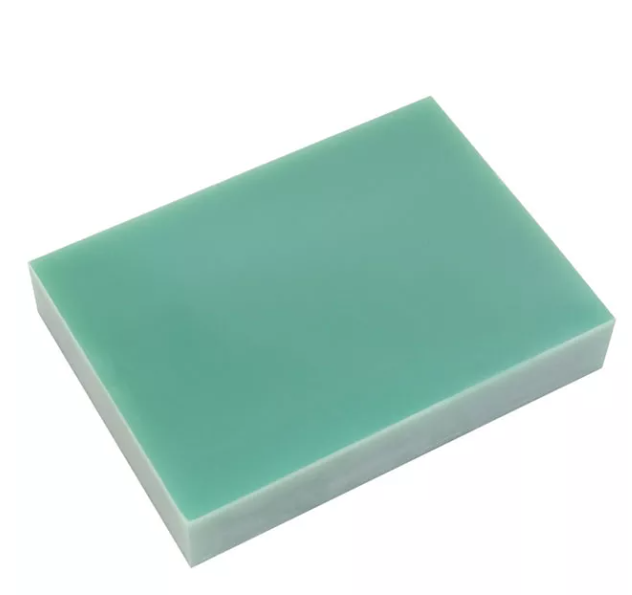

Epoxy fiberglass sheets are composite materials made by combining epoxy resin and glass fibers. This combination results in a lightweight, strong material that offers excellent durability and insulation properties.
The resin acts as a binder, holding the glass fibers together and enhancing the material's overall strength. It provides resistance to corrosion, moisture, and high temperatures, making it ideal for various demanding applications.
There are several types of epoxy glass fiber sheets, each offering different properties suited for specific applications:
● FR4: The most commonly used epoxy fiberglass sheet. It is known for its excellent electrical insulation and mechanical strength. FR4 is commonly found in electronics, particularly in printed circuit boards (PCBs).
● G10: This type is made from glass fiber cloth impregnated with epoxy resin and is non-flame retardant. G10 is highly durable and used in applications that need strength and flexibility, such as in aerospace and industrial settings.
● G11: Known for its superior heat resistance, G11 is commonly used in high-performance electronics and electrical equipment. It is stronger than G10 and can withstand more extreme conditions, making it ideal for high-temperature environments.
Epoxy fiberglass sheets have a wide range of applications across multiple industries:
● Printed Circuit Boards (PCBs): Epoxy fiberglass sheets like FR4 are used as substrates for PCBs due to their excellent insulation and mechanical properties.
● Electrical Insulation: These sheets provide reliable electrical insulation, making them essential in transformers, switchgear, and other electrical equipment.
● Aerospace: Their strength-to-weight ratio and thermal stability make epoxy fiberglass sheets ideal for use in aerospace components.
● Automotive: Epoxy fiberglass sheets are used in automotive applications, including engine parts and structural components that require heat resistance and durability.
These materials are essential in industries that demand high-performance and reliable materials under varying environmental conditions.
Epoxy fiberglass sheets are known for their impressive thermal stability. The combination of epoxy resin and fiberglass allows the material to maintain its strength and structural integrity when exposed to heat. This makes them suitable for high-temperature environments where other materials might degrade.
The epoxy resin in these sheets hardens and strengthens under heat, while the fiberglass reinforcement ensures that the material retains its shape and mechanical properties even in extreme conditions. This combination makes epoxy fiberglass sheets a durable solution for applications in various industries.
The Glass Transition Temperature (Tg) is a key factor in understanding how epoxy fiberglass sheets perform under heat. Tg refers to the temperature at which the material changes from a rigid, glassy state to a more flexible, rubbery state.
For epoxy fiberglass sheets, the Tg is crucial because it determines the upper limit of their temperature resistance. When the temperature exceeds the Tg, the material may lose its rigidity and ability to perform effectively, leading to deformation or loss of mechanical strength.
Different types of epoxy fiberglass sheets offer varying levels of heat resistance. Here's a breakdown of their heat tolerance:
● FR4: Known for its reliable electrical insulation, FR4 can withstand temperatures between 105°C to 240°C. It's ideal for use in applications like printed circuit boards and electrical components.
● G10: This material offers superior strength and can handle temperatures up to 130°C. It's often used in industries like aerospace and automotive, where both strength and moderate heat resistance are required.
● G11: With the highest heat resistance of the three, G11 can handle temperatures up to 180°C. It’s perfect for more demanding applications in high-temperature environments, such as industrial electrical systems and high-performance electronics.
● Automotive Engines: Epoxy fiberglass sheets, especially G10 and G11, are used in engine components where high temperatures are common. They provide insulation and strength even in extreme conditions.
● Aerospace: In aircraft, components made from epoxy fiberglass sheets must withstand high heat. G11, with its superior heat resistance, is often used in aircraft parts that encounter high thermal stress.
● Electrical Insulation: Epoxy fiberglass sheets like FR4 are commonly used in transformers and other electrical systems. Their ability to maintain insulation properties even under heat is essential for safety and efficiency.
Epoxy fiberglass sheets are widely used in industries that require materials capable of withstanding high temperatures. These sheets offer a combination of strength, insulation, and heat resistance, making them an essential component in various sectors.
● Aerospace: In aerospace applications, materials must endure extreme temperatures while maintaining structural integrity. Epoxy fiberglass sheets, particularly G10 and G11, are used in aircraft parts that face high thermal stress.
● Automotive: Automotive engines generate significant heat, making high-temperature resistance crucial for components like engine parts and electrical systems. Epoxy fiberglass sheets provide insulation and structural support in these high-heat environments.
● Electronics: Epoxy fiberglass sheets are used in various electronic devices, where they help prevent overheating and maintain the reliability of components. They are especially useful in high-performance electronics that operate at elevated temperatures.
● Electrical: Epoxy fiberglass sheets play a vital role in transformers, high-voltage switchgear, and other electrical components. These materials maintain their insulating properties even under high heat, ensuring the safety and efficiency of electrical systems.
Epoxy fiberglass sheets are crucial in the production of printed circuit boards (PCBs), particularly in high-temperature environments. The combination of fiberglass and epoxy resin offers excellent insulation, mechanical strength, and heat resistance.
● Role in PCBs: In PCBs, epoxy fiberglass sheets serve as the base material, providing the necessary electrical insulation for the components. They help prevent short circuits, maintain the stability of connections, and ensure the durability of the board under heat stress.
● Benefits: These sheets are highly reliable even in extreme conditions. Their ability to handle high temperatures ensures the longevity and performance of PCBs used in critical applications like telecommunications, computing, and automotive electronics. Additionally, epoxy fiberglass sheets help prevent warping and other forms of damage that can occur when the temperature rises beyond standard operating levels.
The performance of epoxy fiberglass sheets at high temperatures is heavily influenced by their composition and how they are made.
● Quality of Glass Fiber and Epoxy Resin: The type and quality of the glass fiber used play a significant role in the material's heat resistance. Higher-quality glass fibers provide greater strength and stability under heat. Similarly, the quality of the epoxy resin is crucial. A high-grade resin ensures the sheet maintains its integrity at elevated temperatures without becoming brittle or soft.
● Additives for Enhanced Heat Resistance: Additives such as flame retardants are often included to improve the thermal properties of epoxy fiberglass sheets. These additives enhance the material's ability to resist high heat and prevent combustion, ensuring that the material can handle extreme temperatures without breaking down.
The thickness of an epoxy fiberglass sheet also significantly impacts its performance in high-temperature conditions.
● Effect of Thickness on Thermal Properties: Thicker sheets generally provide better insulation against heat. The additional material helps reduce the transfer of heat, keeping the internal components cooler. This makes thicker sheets more suitable for applications where heat protection is crucial, such as in electronic components or automotive systems.
● Mechanical Stability and Heat Insulation: A thicker epoxy fiberglass sheet offers enhanced mechanical stability, helping to maintain its shape and structure even under thermal stress. This is particularly important in applications where the material may be exposed to both physical stress and high temperatures, as it ensures that the sheet won’t warp or lose its strength when subjected to prolonged heat.
While epoxy fiberglass sheets perform well in moderate to high temperatures, they do have limitations when exposed to extreme heat.
● Material Deformation: If the temperature exceeds the material's maximum tolerance, epoxy fiberglass sheets can start to deform. This may lead to changes in shape or warping, making them unsuitable for precision applications.
● Loss of Mechanical Properties: At extremely high temperatures, the resin in the epoxy fiberglass sheet begins to soften, losing its mechanical strength. This reduces the material's ability to bear load, causing it to break or fail under stress.
● Performance Beyond Operating Range: When exposed to temperatures beyond their typical operating range, epoxy fiberglass sheets lose their insulating properties. This may result in electrical conductivity, which can lead to short circuits in electrical components.
In environments where temperatures exceed the limits of epoxy fiberglass sheets, alternative materials should be considered.
● Polyimide: Polyimide is an excellent alternative for extreme heat applications. It can withstand temperatures higher than epoxy fiberglass sheets, often up to 300°C or more. Its superior heat resistance makes it ideal for aerospace and high-performance electronics.
● Ceramic Substrates: Ceramic materials, such as alumina and zirconia, offer exceptional heat resistance, often capable of withstanding temperatures over 1000°C. These materials are perfect for extreme high-temperature environments, such as industrial furnaces or high-power electrical systems.
In these cases, it's important to evaluate the environment and select a material that will ensure performance and safety under extreme conditions.
Advances in manufacturing processes and material modifications have led to significant improvements in the heat resistance of epoxy fiberglass sheets. Manufacturers have found ways to enhance the thermal stability of these materials, allowing them to perform better under extreme conditions.
● Special Epoxy Resins: One of the key improvements is the development of epoxy resins with higher thermal stability. These specialized resins can withstand higher temperatures before softening, thus extending the lifespan and usability of epoxy fiberglass sheets in heat-sensitive applications.
● Improved Fiberglass Reinforcement: The fiberglass used in epoxy fiberglass sheets can also be upgraded to improve its heat resistance. By using stronger, more heat-tolerant fibers, manufacturers can create sheets that are not only more durable but also more stable under high temperatures.
Several manufacturers have successfully enhanced the heat resistance of standard epoxy fiberglass sheets by using these innovative solutions.
● High-Performance Electronics: In the electronics industry, the use of high-thermal-stability epoxy resins and improved fiberglass reinforcement has enabled epoxy fiberglass sheets to be used in devices that experience prolonged exposure to high temperatures, such as power electronics and automotive circuits.
● Aerospace Components: Aerospace manufacturers have adopted epoxy fiberglass sheets with enhanced heat resistance for parts that endure extreme temperature fluctuations. This includes components like aircraft electrical systems, where reliability and durability at high altitudes are essential.
These modifications make epoxy fiberglass sheets a more versatile material, suitable for even the most demanding high-temperature environments.
Epoxy fiberglass sheets are strong, durable, and heat-resistant materials made from epoxy resin and fiberglass. They offer excellent performance in high-temperature environments, with grades like FR4, G10, and G11 providing different levels of heat resistance. These sheets are used across industries like aerospace, automotive, and electronics.
In conclusion, epoxy fiberglass sheets can withstand high temperatures, making them ideal for demanding applications, though they should be used within their rated temperature limits.
Need high-quality epoxy glass fiber sheets tailored to your specific requirements? Contact RDS Technology for custom orders, detailed specifications, and expert guidance on high-temperature applications. Our experienced team is ready to assist you with your unique needs and help you find the best solutions for your projects. Reach out today and let us be your trusted partner in high-performance materials.
Q1: Can epoxy glass fiber sheets withstand high temperatures for long periods?
A: Yes, epoxy glass fiber sheets can handle high temperatures over extended periods, especially within their rated range (e.g., FR4 up to 240°C). Prolonged exposure beyond this range may lead to degradation, loss of mechanical strength, and deformation.
Q2: What is the maximum temperature epoxy glass fiber sheets can withstand?
A: The maximum temperature varies by grade: FR4 withstands up to 240°C, G10 up to 130°C, and G11, the most heat-resistant, endures up to 180°C.
Q3: Can epoxy glass fiber sheets be used in outdoor applications where they are exposed to sunlight and heat?
A: Epoxy fiberglass sheets are durable in outdoor environments, resisting UV damage and heat. However, they perform best within their specified temperature ranges to avoid degradation from prolonged sun exposure and high temperatures.
Q4: Are epoxy glass fiber sheets safe to use in electrical applications at high temperatures?
A: Yes, epoxy fiberglass sheets are safe for electrical applications. They provide excellent electrical insulation properties and maintain performance at elevated temperatures, as long as the temperature remains within their maximum rated limit.
