In the modern industrial landscape, material performance under extreme conditions is a top priority for engineers, designers, and manufacturers. Among the various materials available, epoxy fiberglass tubes have gained widespread popularity due to their mechanical strength, electrical insulation, and chemical resistance. These properties make them a preferred choice in sectors ranging from aerospace to marine, electrical to chemical processing. But one of the most frequently asked questions is: Are epoxy fiberglass tubes resistant to chemicals?
This article seeks to answer that question in detail by exploring the composition, properties, and chemical resistance of epoxy fiberglass tubes, while also offering insights into how their performance can be enhanced for specific applications.

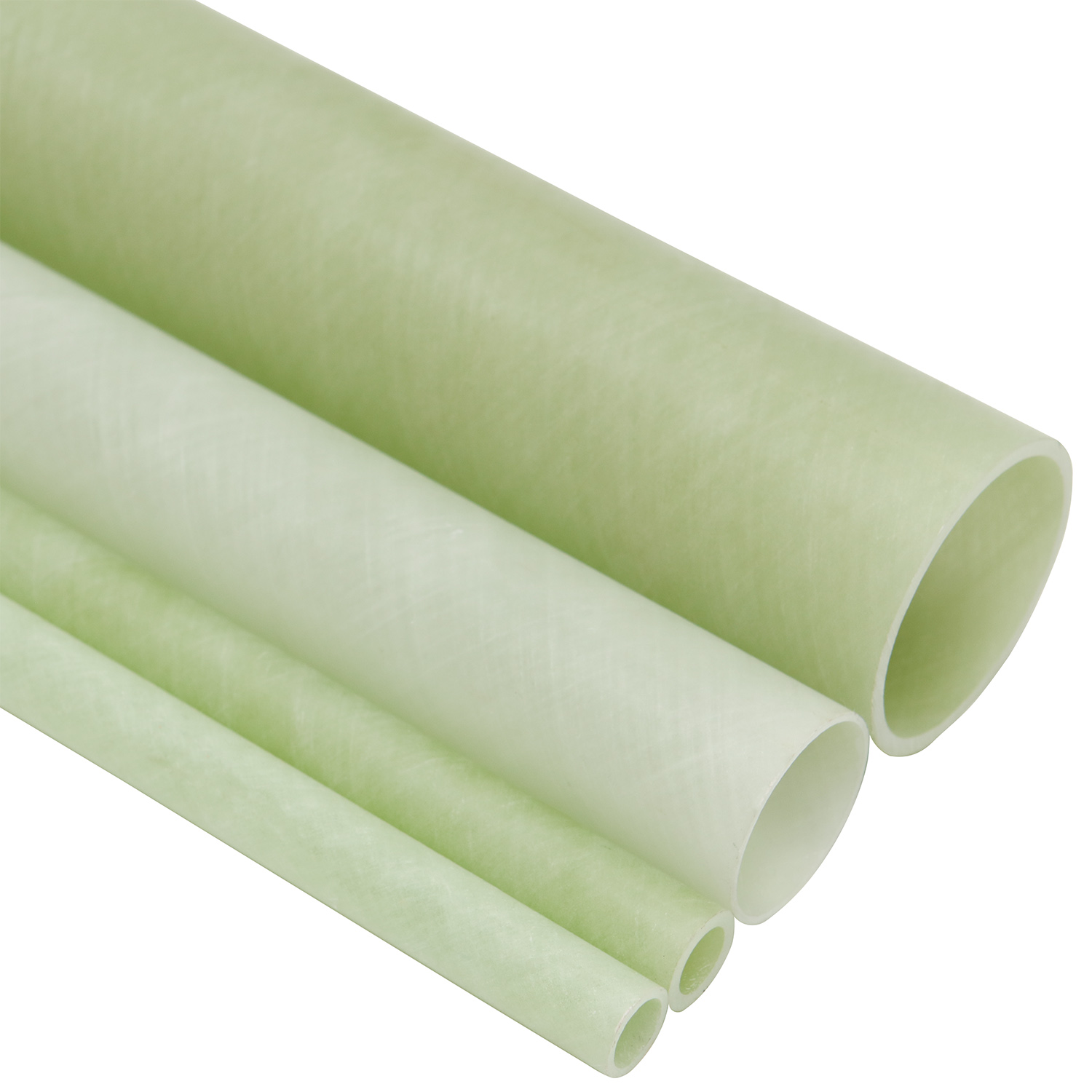

An epoxy fiberglass tube is a composite material made by combining epoxy resin with fiberglass reinforcements (typically glass cloth or roving). The result is a lightweight yet incredibly strong structure with excellent dimensional stability.
The manufacturing process involves several steps:
Resin Impregnation: Fiberglass cloth is impregnated with epoxy resin.
Winding or Layering: The resin-coated fiberglass is layered or wound around a mandrel.
Curing: The assembly is heated to cure the epoxy, resulting in a rigid, durable tube.
Finishing: The tube is trimmed and sometimes coated for additional resistance or aesthetics.
The resulting epoxy fiberglass tube combines the best of both materials—epoxy's chemical and thermal resistance with fiberglass's mechanical strength.
High Tensile Strength: Withstand high mechanical loads.
Thermal Stability: Operate effectively in temperatures ranging from -50°C to 180°C.
Electrical Insulation: Ideal for use in high-voltage applications.
Corrosion Resistance: Unlike metal, it won't rust or degrade easily in corrosive environments.
Lightweight: Easier to transport and install compared to metal tubes.
These features make epoxy fiberglass tubes a staple in demanding applications.
Epoxy fiberglass tubes are found in many sectors:
| Industry | Application |
|---|---|
| Electrical | Insulation for transformers, circuit breakers |
| Aerospace | Structural supports, radomes |
| Marine | Piping and structural components |
| Chemical Processing | Transport of corrosive fluids |
| Automotive | Roll cages, structural reinforcements |
| Renewable Energy | Wind turbine blade supports |
This wide-ranging applicability is largely due to their chemical resistance, which we'll explore in detail next.
Several factors influence how resistant an epoxy fiberglass tube is to chemicals:
Type of Epoxy Resin: Not all epoxies are created equal. High-performance epoxies with specific additives offer better resistance.
Curing Process: Proper curing ensures optimal cross-linking, which enhances chemical stability.
Exposure Conditions: Concentration, temperature, and duration of chemical exposure significantly affect performance.
Tube Thickness: Thicker walls provide better barrier protection against permeation.
Surface Finish: Smooth or coated surfaces resist chemical attack better.
Understanding these variables helps in selecting the right tube for the job.
To help assess compatibility, here's a comparative table showing how epoxy fiberglass tubes respond to various chemicals:
| Chemical | Resistance Level | Notes |
|---|---|---|
| Sulfuric Acid (10%) | High | Minimal degradation |
| Hydrochloric Acid (10%) | Moderate | Long-term exposure may cause softening |
| Sodium Hydroxide (10%) | Low | Can degrade epoxy matrix |
| Acetone | Low | Causes swelling and softening |
| Ethanol | Moderate | Slight degradation over time |
| Diesel Fuel | High | Excellent resistance |
| Motor Oil | High | No significant effect |
| Sea Water | High | Ideal for marine use |
| Ammonia (aqueous) | Moderate | May cause discoloration |
Note: Always consult chemical compatibility charts and perform sample testing for critical applications.
Despite their many advantages, epoxy fiberglass tubes do have limitations:
UV Sensitivity: Prolonged exposure to sunlight can degrade epoxy unless UV-stabilized.
Alkaline Attack: Strong bases may compromise structural integrity over time.
Thermal Decomposition: At temperatures above 180°C, epoxy begins to degrade.
Swelling in Solvents: Organic solvents like ketones can cause dimensional instability.
These factors must be considered in the design phase to avoid premature failure.
The traditional epoxy resin can be modified to enhance chemical resistance:
Bisphenol-F Epoxies: Offer better chemical resistance than Bisphenol-A types.
Cycloaliphatic Epoxies: Known for superior UV and chemical resistance.
Novolac Epoxies: Exceptional resistance to acids and solvents.
Choosing the right formulation can dramatically increase a tube's lifespan in aggressive environments.
| Resin Type | Chemical Resistance | Typical Applications |
|---|---|---|
| Bisphenol-A | Moderate | General industrial |
| Bisphenol-F | High | Chemical/electrical |
| Novolac | Very High | Acidic environments |
| Cycloaliphatic | High | UV-exposed applications |
Additional protection can be achieved through:
Polyurethane Coatings: Provide abrasion and chemical resistance.
Fluoropolymer Coatings: Excellent for resisting solvents and acids.
Glass Flake Linings: Reduce permeability and chemical attack.
These treatments act as sacrificial layers that prolong the tube's service life.
Design and installation also play a critical role:
Avoid Sharp Bends: Reduces stress concentrations.
Use Compatible Seals: Prevents chemical ingress at joints.
Install in Ventilated Areas: Minimizes vapor build-up.
Regular Inspections: Identifies degradation before failure occurs.
Proper practice ensures that even under chemical exposure, the epoxy fiberglass tube remains reliable and safe.
So, are epoxy fiberglass tubes resistant to chemicals? The answer is a resounding YES, but with caveats. Their chemical resistance is largely dependent on the type of epoxy resin, manufacturing quality, and the specific environmental conditions they are subjected to. With the right formulation and protective measures, epoxy fiberglass tubes can handle a wide range of chemicals, making them a versatile choice for industrial applications.
From electrical insulation to chemical processing, their combination of strength, durability, and chemical resistance places them among the top materials for demanding environments. However, like any material, understanding their limitations and taking steps to mitigate them is crucial for long-term performance.
Q1: What is an epoxy fiberglass tube made of?
A: It is made from fiberglass materials (glass cloth or roving) embedded in an epoxy resin matrix. This composite structure offers high strength, electrical insulation, and chemical resistance.
Q2: Are epoxy fiberglass tubes resistant to acids?
A: Yes, especially to weak and moderately strong acids like sulfuric acid at low concentrations. However, strong acids and prolonged exposure may degrade the material unless specifically formulated for such conditions.
Q3: Can they be used with solvents like acetone or alcohol?
A: They have limited resistance to organic solvents like acetone. Alcohols like ethanol show moderate compatibility but may still cause slow degradation over time.
Q4: How can I improve the chemical resistance of an epoxy fiberglass tube?
A: Use advanced resin systems like Novolac epoxy, apply protective coatings, and ensure proper design and installation practices to enhance resistance.
Q5: Are epoxy fiberglass tubes suitable for marine environments?
A: Absolutely. Their resistance to sea water and lack of corrosion make them ideal for marine and offshore applications.
Q6: What industries benefit most from chemically resistant epoxy fiberglass tubes?
A: Electrical, chemical processing, marine, automotive, and renewable energy sectors benefit significantly due to the tubes' versatile properties.
Q7: Do they degrade under UV light?
A: Yes, unless UV-stabilized, prolonged sun exposure can degrade the epoxy matrix. UV-resistant formulations or coatings can mitigate this.
Q8: What is the typical temperature range for epoxy fiberglass tubes?
A: They typically operate well between -50°C to 180°C, depending on the specific resin system used.
